The T-800 endoskeletons were built for a Aliens vs. Terminator Halloween Special night game run with Gunman Airsoft.
Most airsoft sites default to zombie themes for Halloween. The intent here was to do something deliberately different, leaning into spectacle, humour, and physical presence rather than costumes and makeup.
The chosen theme was Aliens vs Terminator. That decision immediately set a hard requirement. Any Terminator used in the game had to be visually imposing. A scaled down or lightweight prop would not carry the atmosphere or justify the narrative.
A highly detailed T-800 endoskeleton model was sourced from Gambody. The model was supplied at quarter scale and intended for poseable display rather than life-size installation.
An early mistake in scaling assumptions resulted in the first print being significantly undersized. While unusable for the event, this prototype exposed the real implications of scaling, weight, and structural stress at human scale. It also removed any ambiguity about whether the project should be attempted at full size. Anything smaller would not work.
The decision was made to commit fully to three identical 1:1 scale builds.

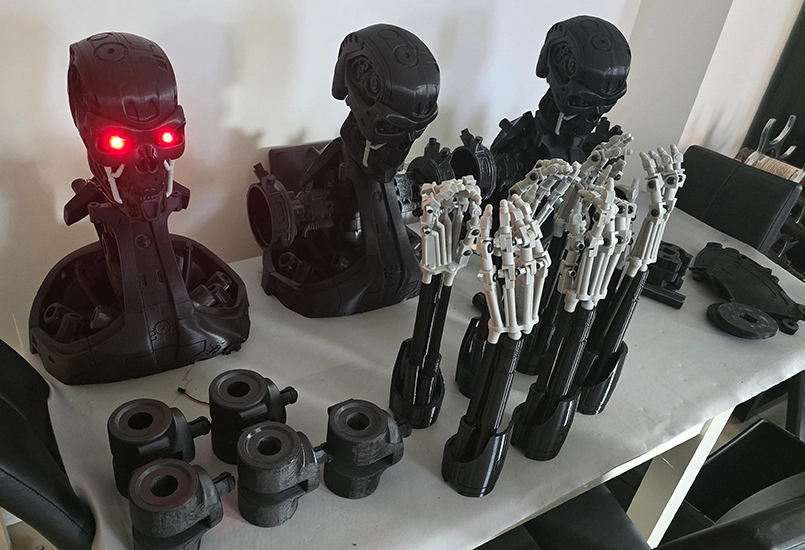

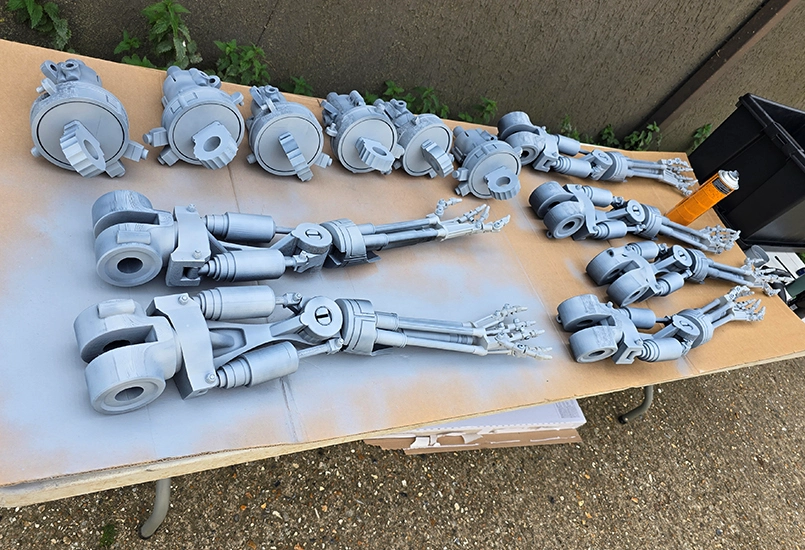

Printing three full-size endoskeletons became a throughput problem as much as a modelling one. Over a six month period, parts were produced across seven Creality printers, including Ender 3s, an Ender 5 for larger components, and later K1 Max printers to accelerate production.
Material choice mattered. Earlier projects had already demonstrated the limitations of PLA for large structural parts. The later stages of the build shifted toward PETG for improved strength and impact resistance, made practical by fully enclosed printers. This decision significantly reduced part failure and post-print reinforcement.

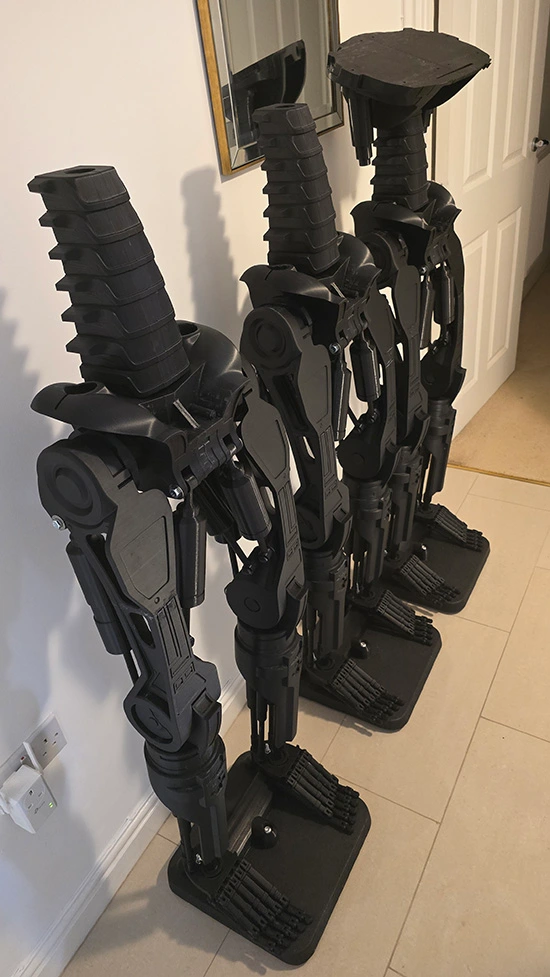

At full scale, the endoskeleton design revealed its weaknesses. Much of the mass is carried through thin legs and a narrow spine, and the original poseable design was never intended to support its own weight at this size.
Adhesives were ruled out early. All major joints were mechanically fastened using large bolts, allowing limited poseability while prioritising strength. Even fully assembled, the Terminators were unstable when freestanding. Each unit required an metal support pole tied into a baseboard to prevent tipping.

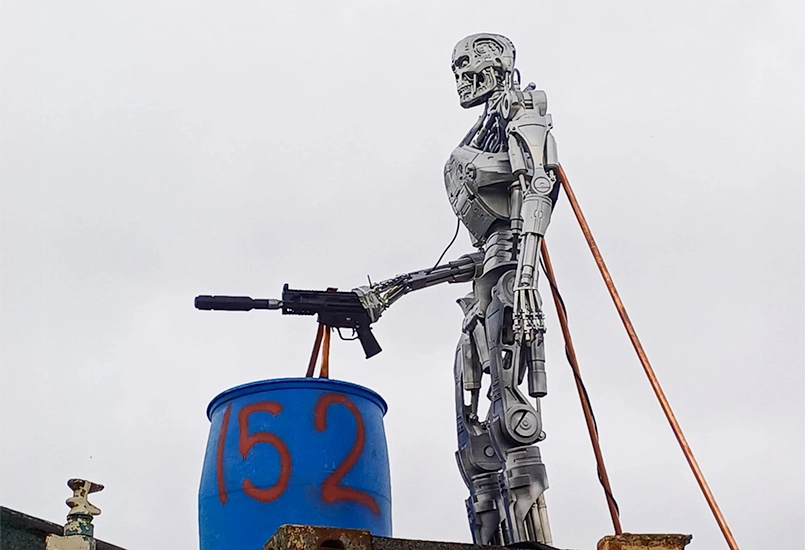

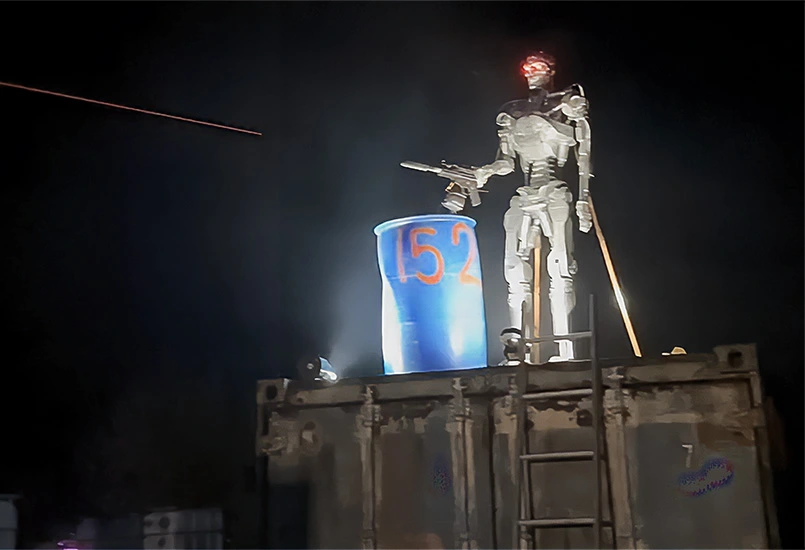

To eliminate risk during gameplay, all three Terminators were ultimately mounted on top of shipping containers within the site. This solved both safety and durability while increasing their visual dominance.
The Terminators were designed to be active threats rather than static scenery. Each was fitted with a compact Airsoft AEG rifle, drum magazine, red tracer unit, lighting, and a custom effects box.
The effects box controlled eye illumination, laser bolt sound effects, and electronically triggered firing bursts by interfacing directly with the AEG trigger system. Randomised burst lengths created unpredictable tracer fire that visually read as laser weapons in low light conditions. Drum magazines allowed continuous operation for a full 45-minute game without intervention.
The gameplay objective was simple and physical. Players had to reach each Terminator’s ground-level control box and press a large red button to deactivate it. The team that disabled all three units the fastest won the game.
The project succeeded because it treated a deliberately theatrical idea with engineering discipline. Scale, weight, safety, and interaction were solved pragmatically rather than aesthetically.
The Terminators became landmarks, obstacles, and objectives simultaneously. Combined with lighting, sound, and elevation, they delivered a memorable experience that stood apart from typical Halloween events and justified the effort involved in building them at full scale.
